Features

Core

• Newly advanced A9 main board with Linux OS, calculating speed is 4 times faster than traditional products
• Support 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review

  Body

• 12.1′ inch high-brightness TFT LED
• Supports display 9~13 waveforms
• Support 7 channel ECG waveform display simultaneously
• optional HDMI output

   Printer

• Built-in high-speed 50mm thermal printer(Brand: SEIKO, Japan)

  Central System

• Optional Build-in wireless network module, supporting wired or wireless connection to the central monitoring station.
•  Optional Support HL7 (Health Level Seven)

  Alarm

•  Three-level acousto-optic alarm
•  Sensor-off alarm
•  Paper out alarm
•  Support alarm review.

   Linux OS

• Support operation with mouse and computer keyboard (option)
• Multi-display mode to meet different clinical requirement, including standard interface, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface.
• NIBP self-test mode : including overpressure test, static pressure test and air leakage test.
• Generate ID automatically when register a new patient . Support medical history search by patient ID, name and mobile number
• 18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
• Drug calculation and titration table
• Support multi-language display
• Support online software upgrading by net/USB

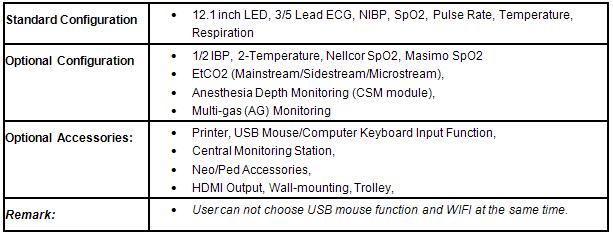

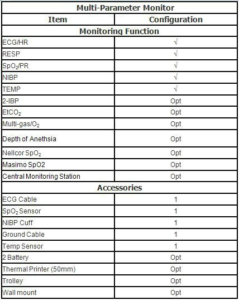

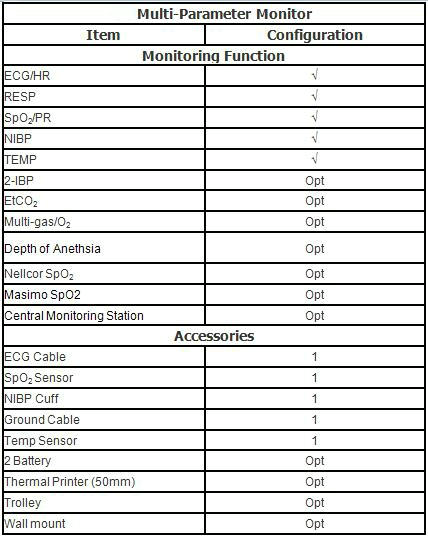

Model Configuration
